How to Specify a Coated Chain-Link Fence Without Buying the Wrong Grade

Updated August 30, 2026

A black or green vinyl chain link fence may look straightforward, but the label can hide important differences. Two rolls advertised with the same gauge may contain different amounts of steel. Matching posts may be powder-coated rather than vinyl-coated. A low fabric price may exclude most of the fence system. Privacy slats can also turn an ordinary open-mesh fence into a substantially different structural problem.

The safest buying rule is simple: buy the written specification, not the color or headline gauge.

Before comparing bids, identify five things:

1. The fabric specification
2. The framework and hardware specification
3. Any added privacy load
4. The complete delivered or installed cost
5. The site and installation conditions

This guide relies primarily on current manufacturer, supplier, contractor, and retailer information. Product specifications and standards claims should therefore be confirmed through the manufacturer’s technical data sheet, project submittal, or certificate when contract compliance matters.

Related: Galvanized Chain Link Fence: Gauge and Coating.

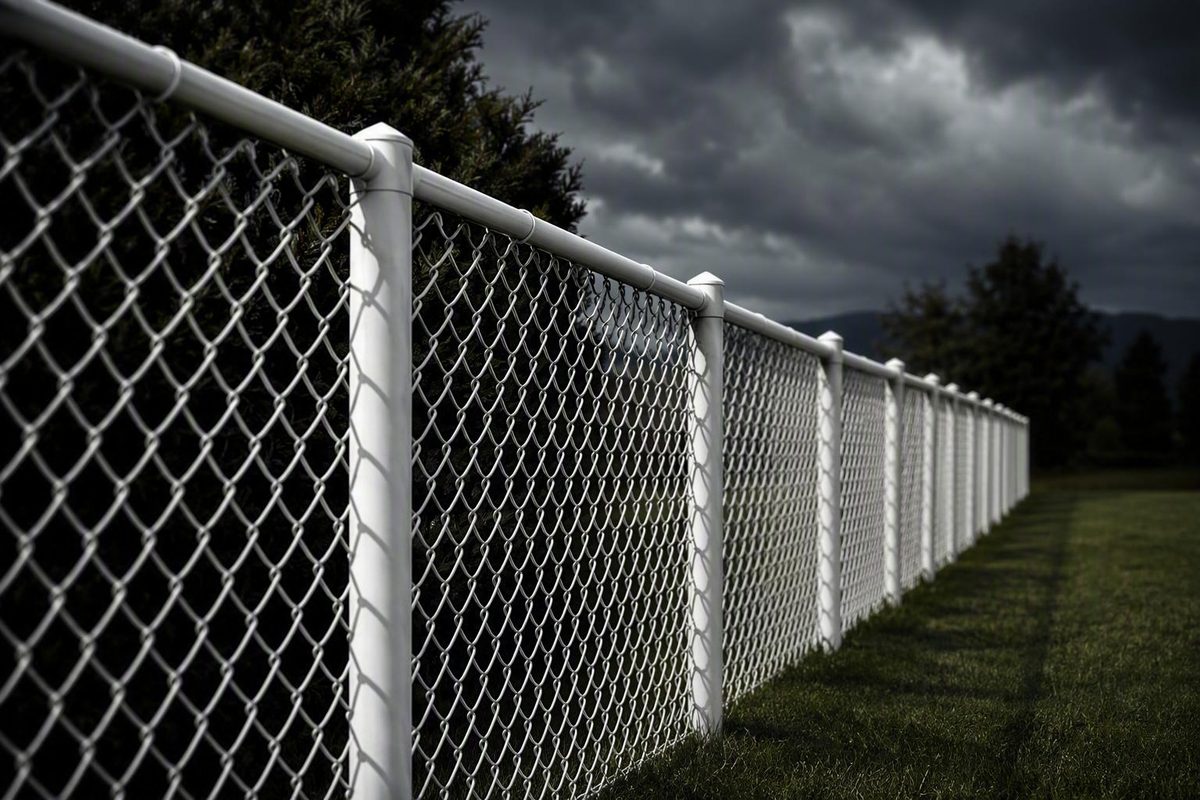

What “vinyl chain link” actually means

Vinyl-coated chain link is not made from solid vinyl. It consists of woven steel chain-link fabric covered by a polymer coating, commonly over galvanized steel. The two systems differ in construction, visibility, airflow, loading, installation, and price.

“Vinyl-coated” and “PVC-coated” are commonly used as category names for the same general type of fence. Those terms do not identify the precise polymer, coating thickness, adhesion method, or underlying metallic treatment. Southwestern Wire, for example, describes vinyl-coated products as well as a fusion-bonded polyolefin product, illustrating why buyers should confirm the actual material and process on the technical data sheet rather than relying on the product category alone as shown in the manufacturer’s coating overview.

It is equally important to separate the fabric finish from the system finish. A coordinated fence may use:

• Vinyl- or PVC-coated steel mesh
• Powder-coated steel posts and top rails
• Coated or painted fittings
• Color-matched wire ties
• Gates assembled from framework with a finish different from the mesh coating

America’s Fence Store, for example, describes a residential system that combines smooth vinyl-coated fabric with powder-coated framework. Thus, “black vinyl chain link fence” may describe the overall appearance even though not every black component is wrapped in vinyl according to the retailer’s system description.

Color alone establishes neither grade nor coating method. A black post could be powder-coated, painted, polymer-coated, or finished by another process. Black mesh could use an extruded sleeve, an adhesively bonded coating, or a thermally fused coating. Ask for the finish of each component in writing.

Unmodified chain link remains open mesh. It preserves airflow and sightlines and does not provide full visual privacy. Slats or screening can reduce visibility, but they do not turn chain link into a solid vinyl-panel fence.

Use this decision framework before requesting prices:

• Fabric: height, mesh, core gauge, finished gauge, coating class, underlying galvanization, color, and selvage
• Framework: post and rail dimensions, wall or framework grade, spacing, and finish
• Privacy: slat or screen type, screening density, and resulting structural requirements
• Cost: all materials, freight, unloading, taxes, permits, removal, tools, and labor
• Installation: property constraints, soil, frost, wind exposure, terrain, gates, and local requirements

Decode the fabric specification before comparing quotes

An advertisement such as “black 9-gauge chain link” is incomplete. A usable quote should identify every measurement basis and construction detail that could change strength, fit, appearance, handling, or cost.

Fabric specification checklist

Require the quote or order confirmation to state:

• Fence or fabric height
• Roll length
• Mesh opening
• Metallic steel-core gauge or diameter
• Finished coated gauge or diameter
• Coating class and application method
• Polymer type, if documented
• Color
• Top and bottom selvage
• Underlying galvanization or other metallic treatment
• Applicable standard, if required
• Manufacturer and product code
• Roll weight when freight or handling matters

Why coated-wire gauge is easy to misread

With conventional wire gauge, a smaller number generally denotes thicker wire. Coated chain link complicates that rule because a seller might advertise either:

• The diameter or gauge of the metallic steel core, or
• The finished diameter or gauge after the polymer coating is added

A thick coating can make a thinner steel core appear to be heavier wire. Finished gauge alone does not tell you how much steel is inside.

Signet Fence provides a useful example: fabric advertised as 8-gauge finished contains an 11-gauge galvanized-steel core. The listing also specifies 2-inch mesh, a Class I extruded coating, and 50-foot rolls. Its advertised 8-gauge measurement includes the coating; the core itself is not 8 gauge as the seller’s specifications explain.

This ambiguity also affects products listed simply as “9 gauge.” For example:

• Fencing Direct lists a black roll as 4 feet high, 50 feet long, with 2-inch mesh and 9-gauge wire. The same page further identifies a 0.095-inch galvanized core, which is the kind of underlying measurement buyers should request on the retailer’s product listing.
• America’s Fence Store lists another residential fabric as 5 feet high, with 2-1/4-inch mesh and 9-gauge wire. That listing illustrates that matching gauge labels do not ensure matching height, mesh, measurement convention, or system grade.

Ask every supplier to state both the metallic-core diameter or gauge and the finished coated diameter or gauge. Do not infer one from the other.

Mesh, roll length, and selvage

The mesh measurement describes the chain-link diamond opening. Do not treat 2-inch and 2-1/4-inch mesh as interchangeable merely because both appear in residential product lines.

Fifty-foot rolls appear in multiple supplied product examples, but that does not make 50 feet a universal roll length. Confirm the actual length because it affects roll count, waste, freight, handling, and fabric-only cost per linear foot.

Separate rolls can be joined without placing a post at every roll end. Signet Fence describes joining its coated 50-foot sections by weaving a single spiral strand through the interlocking diamonds at the adjoining ends. Treat this as the seller’s documented procedure for its product, and follow the selected manufacturer’s instructions for alignment and coating protection.

Selvage describes how the wire ends are finished along the top and bottom edges:

• Knuckle-knuckle (KK): the wire ends are folded over at both edges.
• Knuckle-twist (KT): one edge is knuckled, while the other terminates in twisted points.

For its listed coated fabric, Signet Fence specifies knuckle-knuckle through 6-foot heights and knuckle-twist at 7 feet and above. That is a seller-specific product convention, not a universal industry rule. Specify the edge treatment required for the project’s design, safety, and access-control needs.

A copyable fabric specification

A precise request could read:

5-foot-high, 2-inch mesh, 11-gauge galvanized core, 8-gauge finished, ASTM F668 Class I as seller-specified, black, 50-foot roll, knuckle-knuckle selvage.

“As seller-specified” matters when the evidence is a storefront claim. If ASTM compliance is a contractual requirement, request the manufacturer’s current technical data sheet, product certificate, or lot-specific documentation rather than treating a product-page statement as independent certification.

Do not compare prices until the height, roll length, mesh, metallic-core measurement, finished measurement, coating class, color, selvage, and underlying metallic coating all match. If those measurement bases differ, the quotes are for different fabric.

Class 1, Class 2A, and Class 2B coating methods

The coating class describes more than color. It identifies how the polymer is applied and attached to the wire.

Industry sellers and contractors commonly describe the classes as follows:

• Class 1 — extruded: a polymer sleeve is extruded around the wire without a bonded interface.
• Class 2A — extruded and bonded: the extruded coating is attached to the wire with an adhesive.
• Class 2B — fused and bonded: the coating is thermally fused and bonded to the steel.

These descriptions and the associated references to ASTM F668 come from commercial industry sources rather than the full standard. The American Fence Company, for example, says ASTM F668 ordering practice uses the metallic core-wire gauge and distinguishes the three attachment methods in its explanation of coating and gauge terminology. If compliance determines project acceptance, verify the terminology against current authoritative documentation and obtain certification for the product actually delivered.

Why adhesion matters

Possible failure modes include:

• Cuts through the polymer
• Local peeling or sleeve movement
• Cracking
• Abrasion and thinning
• Loss of adhesion
• Exposure of the galvanized substrate or steel
• Corrosion where the protective system has been breached

Bonding changes how the coating attaches to the wire, so it is a meaningful specification where repeated contact or abrasion is likely. It does not make the fence immune to damage. Bonded coatings can still be cut, cracked, worn, or damaged at connections.

Class	Construction	Bond to wire	Relevant vulnerability	Questions to ask	Evidence limitations
Class 1	Polymer extruded as a sleeve around the wire	No adhesive or thermal bond described	A cut or severe abrasion may permit local peeling or movement	What are the core gauge, coating thickness, polymer, warranty, and approved damage procedure?	Comparative durability statements are largely seller-supplied
Class 2A	Polymer extruded over wire prepared with adhesive	Adhesively bonded	Cuts, abrasion, cracking, or bond loss can still expose the substrate	Which adhesive-bonded specification applies, and is certification available?	No independent long-term comparison is supplied here
Class 2B	Polymer thermally fused and bonded to the wire	Thermally fused bond	Cutting, impact, abrasion, and cracking remain possible	What polymer, substrate preparation, coating thickness, and certificate apply?	Supplier claims do not prove universal superiority

Do not choose a class merely because one label sounds more advanced. Consider:

• Frequency of physical contact
• Risk of scraping, vandalism, ball impact, or equipment contact
• Coastal, deicing-salt, or persistently damp exposure
• Project specification and acceptance requirements
• Available warranty and exclusions
• Documentation supplied with the order
• Budget and local availability

The polymer is only one part of the protection system. Steel-core diameter, underlying galvanization, surface preparation, polymer formulation, framework finish, hardware, and installation damage all matter.

Residential versus commercial systems—and every part you need

“Residential” and “commercial” are not colors. A black residential fence does not become commercial because it looks substantial, and a galvanized fence is not automatically lower grade.

System grade reflects a combination of:

• Fabric core gauge
• Mesh opening
• Fence height
• Post diameter
• Rail diameter
• Pipe wall or framework grade
• Terminal- and gate-post capacity
• Hardware construction
• Gate frame and hinge design
• Post spacing
• Footing design
• Expected impact, wind, snow, and privacy loading

Supplier catalogs illustrate the range but do not establish universal specifications. One coordinated residential assortment, for example, includes 2-1/2-inch terminal posts, a 2-inch line post, and top rails in more than one diameter. Those are examples from one seller’s component system, not dimensions to transplant into every project.

Complete bill of materials

Build the material list from the site layout and gate schedule, not from fabric roll count alone.

Fabric and lower restraint

• Chain-link fabric
• Bottom tension wire
• Hog rings where required
• Privacy slats or screening, if selected

Posts and framework

• End posts
• Corner posts
• Gate posts
• Other terminal posts
• Line posts
• Top rail
• Rail sleeves or couplings
• Line-post or loop caps
• Terminal-post caps
• Rail ends

Tension and brace hardware

• Tension bars
• Tension bands
• Brace bands
• Carriage bolts, nuts, and specified fasteners
• Fabric ties
• Rail ties
• Post ties
• Color-matched hog rings where applicable
• Truss rods or braces if required by the design

Gates

• Walk gates
• Single- or double-drive gates
• Gate frames and fabric
• Gate posts sized for the opening and load
• Hinges
• Latches
• Stops
• Drop rods for applicable double gates
• Holdbacks or other specified gate hardware

Installation materials and tools

• Concrete or the specified footing material
• Layout stakes and mason’s line
• Tape measure and levels
• Post-hole digger or auger
• Shovels and digging bar
• Wrenches and pliers
• Tension bar
• Come-along or approved stretching equipment
• Cutting tools appropriate to the system
• Personal protective equipment
• Temporary bracing and handling equipment as needed

Do not substitute line posts for terminal or gate posts simply because their finish and outside color match.

A coordinated color system may combine vinyl-coated mesh, powder-coated framework, and color-matched ties and fittings. Require written confirmation that the fabric, posts, rails, gate frames, ties, bands, caps, and fittings have compatible colors and finishes.

Where appearance matters, request physical color samples. PrivacyLink cautions that digital colors are approximate and recommends physical samples for accurate matching on its chain-link product page. Ask whether later replacement components are likely to match, but do not assume an exact match between production batches.

How to compare costs without mistaking fabric price for fence price

The supplied evidence does not support a universal national installed price. Available figures combine fabric-only listings, regional contractor estimates, different heights, uncertain framework grades, and changing freight or promotional terms. Use the following example to understand the calculation, not as a promise of what a complete project should cost.

A fabric-only arithmetic example

As checked on August 30, 2026, Fencing Direct displayed a price of $206 for one black roll measuring 48 inches high by 50 feet long. The arithmetic is:

$206 ÷ 50 feet = $4.12 per linear foot

That is a time-sensitive fabric-only figure, not an installed-fence price. The listing identifies 2-inch mesh, 9-gauge-listed wire, a 0.095-inch galvanized core, and knuckled top and bottom edges on the retailer’s product page.

The figure excludes:

• Freight and unloading
• Posts and rails
• Caps and fittings
• Tension and brace hardware
• Ties and bottom wire
• Gates and gate hardware
• Concrete
• Taxes
• Tools or rentals
• Old-fence removal and disposal
• Permits
• Labor

That roll cannot be compared directly with another roll price until you normalize:

1. Height
2. Roll length
3. Mesh opening
4. Metallic core gauge
5. Finished coated gauge
6. Coating class
7. Underlying galvanization
8. Selvage
9. Color
10. Freight and delivery terms

Quote worksheet

Use a worksheet that forces each bidder to price the same scope.

Cost category	Quantity or basis	Bid A	Bid B	Details to normalize
Fabric	Rolls or linear feet			Height, mesh, core and finished gauge, class
Line posts	Count			Diameter, wall or grade, length, finish
Terminal and corner posts	Count			Keep separate from line posts
Gate posts	Count			Match gate size and loading
Top rail	Linear feet			Diameter, wall or grade, finish
Fittings and ties	Complete lot			Require an itemized list
Bottom tension wire	Linear feet			Include hog rings if applicable
Walk gates	Each			Opening, frame, hinges, latch
Drive gates	Each			Single or double, drop rods, stops
Privacy products	Linear feet			Slat type, density, screening
Structural privacy upgrades	Complete lot			Posts, spacing, footings, framework
Concrete	Bags, yards, or allowance			State footing assumptions
Tool rental	Days			Auger, stretcher, other equipment
Freight	Shipment			Surcharges and regional limits
Unloading	Shipment			Liftgate, forklift, or labor
Taxes	Applicable basis
Permits and reviews	Allowance			Identify owner-supplied items
Old-fence removal	Linear feet			Include disposal
Terrain or rock charges	Unit or allowance			Define triggering conditions
Labor	Linear foot or lump sum			State all inclusions
Total delivered or installed	Complete project			Compare only matched scopes

Vinyl-coated chain link is generally listed above comparable galvanized chain link in upfront price, but the premium varies with coating class, core gauge, framework, market, freight, and installation. Central Fence describes vinyl-coated chain link as costing more than galvanized chain link but does not establish a universal premium in its general comparison.

Buyers considering the non-polymer-coated alternative can use Fence Report’s galvanized chain-link guide to organize gauge, coating, installation, and cost questions. Obtain current local prices for the exact project specification rather than relying on a broad cost range.

Privacy slats change the structural question

Open chain-link mesh admits air and preserves visibility. Slats or screening reduce visibility, but the available supplier evidence supports treating the result as partial screening rather than the equivalent of an opaque solid vinyl panel.

The more consequential change is structural. Slats and screens reduce the open area through which wind can pass.

A light residential framework designed for open mesh may not be designed for that load. Do not assume slats can be added merely because they fit the mesh openings.

Hoover Fence’s installation manual recommends considering heavier HF20 or HF40 framework and post spacing of 8 or 6 feet for fences fitted with PVC slats, diagonal slats, or privacy screening. These figures are seller guidance for consideration—not a universal design prescription for every site as stated in the retailer’s installation manual.

The correct system depends on:

• Fence height
• Slat type and screening density
• Local design wind conditions
• Exposure and topography
• Snow conditions where relevant
• Post diameter and framework grade
• Post spacing
• Soil and drainage
• Footing diameter and depth
• Gate openings
• Local code and project requirements

Privacy-load decision sequence

1. Choose the required privacy level before buying framework. Decide whether the goal is open mesh, partial screening, or an opaque barrier.
2. Obtain site-specific guidance. Give the manufacturer, contractor, or engineer the project location, fence height, slat product, exposure, soil information, and gate schedule.
3. Revise the structure. Adjust post size, framework grade, spacing, bracing, ties, and footings as directed.
4. Price the revised system. Include the slats, additional framework, larger footings, labor, and freight.
5. Confirm warranty compatibility. Ask whether the selected slats affect fabric, framework, or workmanship coverage.

A hybrid layout can be practical: use solid vinyl where full screening is essential and coated chain link where airflow, visibility, or lower initial cost matters more. The transition, terminal posts, gates, and overall appearance still need to be designed as one system.

Plan the installation around the selected system

Installation dimensions are not universal. Generic chain-link instructions are useful for planning, but the final layout must follow the selected manufacturer’s drawings, applicable local requirements, and actual site conditions.

Before digging

Verify:

• Property boundaries and current survey information
• Required setbacks
• Building or zoning permits
• Deed restrictions
• HOA rules and approval procedures
• Fence-height and location limits
• Pool-barrier rules, where relevant
• Required gate width, swing, and emergency access
• Vehicle and equipment access
• Drainage paths
• Grade changes and terrain
• Soil, rock, and frost conditions
• Underground utilities
• Easements and rights-of-way

Retail installation guides recommend checking property lines, permits, local restrictions, and buried utilities before laying out post holes. These guides do not establish legal compliance: confirm requirements with the local building or zoning authority, the property surveyor where boundaries are uncertain, the HOA where applicable, and the authority responsible for pool barriers.

In the United States, contact 811 before excavation so participating utility operators can arrange for underground facilities to be marked. Lowe’s includes that safety step in its chain-link installation guidance, together with checking local requirements and property boundaries before excavation begins.

Post spacing and holes

General retailer guidance places chain-link posts approximately 6 to 10 feet apart, often with a maximum near 10 feet. Lowe’s gives the 6-to-10-foot range but directs installers to follow manufacturer instructions. Actual spacing depends on fence height, framework grade, soil, frost depth, exposure, gates, corners, and privacy loading.

Post holes are often described as roughly three times the post diameter, and local requirements in cold regions may call for holes below the regional frost line. These are planning rules of thumb, not a final footing design.

Retailer instructions also disagree on post-height markings. Hoover Fence marks terminal posts at fabric height plus 1 inch and line posts at fabric height minus 3 inches. Lowe’s uses plus 2 inches and minus 2 inches. Do not average or combine those dimensions. Use the installation drawing for the selected posts, caps, rails, fabric, and intended bottom clearance.

Where boundaries, excavation, pool barriers, wind loading, or footing dimensions carry legal or safety consequences, obtain direction from the relevant local authority and qualified project professional. A retailer’s generic installation guide cannot approve a particular site.

Handling and stretching coated fabric

The polymer finish can be damaged during:

• Dragging rolls across pavement
• Unloading with chains or sharp forks
• Cutting and unwinding strands
• Pulling a tension bar
• Stretching against rough fittings
• Twisting ties with unsuitable tools
• Joining adjoining rolls

Protect the fabric from abrasive surfaces and inspect contact points as work proceeds. Follow the selected manufacturer’s instructions for stretching, tying, cutting, and joining.

Do not improvise a repair with generic paint or vinyl. If the coating is damaged, ask the manufacturer or supplier whether the affected section should be evaluated, rewoven, repaired with an approved product, or replaced.

Hoover Fence states that vinyl-coated fabric may be more elastic than galvanized mesh and recommends an additional 1/2-inch adjustment when establishing line-post grade marks. That is system-specific retailer guidance, not a universal rule; use it only when following the corresponding installation method and component system.

DIY chain-link installation is reasonably treated as an intermediate project. It requires accurate layout, controlled post setting, suitable tensioning equipment, and careful fabric handling, and it is often easier with a second person. Consider professional installation or engineering review for tall fences, slatted or screened systems, pool barriers, high-wind exposure, unusual soils, large gates, steep grades, or other atypical loads.

Delivery, inspection, maintenance, and the final buying checklist

Long posts and rails may require common-carrier or LTL freight rather than ordinary parcel delivery.

Signet Fence lists 50-foot coated-fabric rolls weighing 98 to 192 pounds, depending on height, and describes shipment by LTL freight truck in its product and shipping specifications.

Freight-readiness checklist

Before paying, confirm:

• Whether the product ships to your region
• Whether delivery uses parcel service or LTL freight
• Required tractor-trailer access
• Whether an appointment is required
• Whether curbside delivery is the only option
• Who unloads the truck
• Whether a liftgate is available or included
• Individual roll weights
• Post and rail lengths
• Packaging method
• Pallet or bundle dimensions
• Available storage space
• Shortage-reporting deadlines
• Concealed-damage procedures
• Requirements for noting visible damage on the delivery receipt
• Responsibility for redelivery or access-failure charges

Inspect immediately at delivery

Compare the shipment with the written purchase order and packing documents. Look for:

• Crushed or distorted fabric rolls
• Scraped, cut, or peeled coating
• Bent posts and rails
• Damaged ends or couplings
• Missing hardware
• Wrong mesh, height, or roll length
• Wrong color
• Mismatched finishes
• Incorrect post or rail grade
• Incorrect gate size or swing
• Label details that conflict with the order
• Unmarked or undocumented coating class
• Missing technical documents or certificates

Photograph packaging, labels, visible damage, and the load’s condition before unloading when practical. Follow the carrier’s and seller’s stated claim procedures, including any requirements for documenting visible damage at delivery.

Inspection and maintenance in service

Periodically inspect for:

• Cuts in the coating
• Peeling or separation
• Cracks
• Abraded contact points
• Exposed steel or galvanized substrate
• Rust at bolts, bands, ties, cuts, and connections
• Loose or missing ties
• Sagging or distorted fabric
• Damaged privacy slats
• Gate sag or misalignment
• Poor latch or hinge operation
• Loose caps and fittings
• Vegetation held in persistent contact with the fence
• Replacement parts that do not match the original finish

Use gentle cleaning methods compatible with the manufacturer’s instructions. When coating damage appears, ask the manufacturer or supplier whether the component should be repaired, rewoven, or replaced.

Contract and warranty questions

Get written answers before signing:

• What is the exact metallic core gauge or diameter?
• What is the finished coated gauge or diameter?
• Which coating class and application process apply?
• What polymer is used?
• What galvanization or metallic coating lies underneath?
• What are the mesh opening and selvage?
• What framework grade, dimensions, wall designation, and finish are included?
• Are gate posts and gate frames specified separately?
• Do ties, bands, caps, rails, gates, and fittings match the intended color and finish?
• What standards documentation will be supplied?
• Does the warranty exclude fading, abrasion, cuts, coastal exposure, salts, or particular uses?
• Who is responsible for shipping damage?
• Who is responsible for coating damage caused during installation?
• What workmanship coverage applies?
• Does adding privacy slats affect the warranty?
• What damage-evaluation or repair procedure does the manufacturer authorize?

Copy-ready ordering template

Please quote a complete vinyl-coated chain-link fence system for [total footage] linear feet at [height] high.

Fabric: [mesh opening] mesh; [metallic core gauge or diameter] galvanized-steel core; [finished coated gauge or diameter]; [Class 1, Class 2A, or Class 2B] coating; [polymer, if specified]; [color]; [KK or KT] selvage; [roll length] rolls.

Framework: [framework grade or designation], with written post and rail dimensions, wall designation, and finish. Post spacing is subject to the approved system design, site conditions, and privacy loading.

Terminals and gates: Include all end, corner, and gate posts; tension and brace assemblies; and this gate schedule: [gate quantity, opening, type, swing, hinges, latches, drop rods, and stops].

Accessories: Include matching ties, bands, caps, rail ends, bolts, bottom tension wire, hog rings where applicable, and [privacy slats or screens, or none].

Foundations and installation: State footing assumptions, concrete quantity, soil or rock exclusions, removal, permits, labor, equipment, and workmanship coverage.

Freight: State shipping method, regional restrictions, delivered price, surcharges, appointment requirements, unloading responsibility, package dimensions, roll weights, rail lengths, and damage-claim procedure.

Documentation: Supply the product data sheet, written core and finished measurements, coating-class documentation, underlying galvanization specification, framework specification, color and finish schedule, warranty, and installation drawing.

Frequently asked questions

Is vinyl-coated chain link the same as a solid vinyl fence?

No. Vinyl-coated chain link is woven steel wire covered by a polymer coating. A solid vinyl fence uses opaque vinyl components such as panels, boards, rails, or pickets. Coated chain link remains open mesh unless slats or screening are added, and its construction and wind behavior remain different from those of a solid panel.

Is an advertised 8- or 9-gauge vinyl-coated wire the steel-core gauge or the finished gauge?

It could be either, depending on the seller’s labeling practice. Ask for both measurements. One documented product is advertised as 8-gauge finished but contains an 11-gauge galvanized-steel core. Never infer steel content from the finished coated gauge alone.

Can two 50-foot rolls of coated chain-link fabric be joined?

Yes, where the product instructions permit it. A documented seller procedure connects adjoining roll ends by weaving a single spiral strand through both edges. Align the diamonds and selvage first, and handle the joining strand carefully to avoid scraping or cutting the coating.

Can privacy slats be added to a residential vinyl-coated chain-link fence?

They may physically fit, but that does not establish that the existing framework can support the resulting wind or snow load. Obtain approval based on fence height, screening density, wind exposure, post size and spacing, soil, footings, and local requirements.

Are the posts and rails vinyl-coated too?

Not necessarily. Complete color systems often pair vinyl-coated mesh with powder-coated posts, rails, gates, caps, and fittings. Confirm every component’s finish in writing. Matching black or green colors do not prove that all parts use the same coating process.

Final buying rule

Buy the written specification, not the color label. Before accepting a quote, require the metallic core gauge, finished gauge, coating class, mesh, underlying galvanization, framework grade and finish, gate schedule, privacy-load provisions, delivered price, warranty, and supporting documentation.

If competing bids cannot be normalized to those details, they are not bids for the same fence.
