How to Choose and Install a Drop Rod That Keeps a Gate in Position

A gate cane bolt looks simple: a vertical rod, two guides, and a place for the rod to land. Yet many installation problems arise because buyers focus on the rod alone. The attachment point may be too weak, the raised rod may drag on a slope, or the receiver may shift until the rod no longer lines up.

Treat the hardware as a three-part system:

1. Attachment: Brackets or guides connect the bolt to sound gate framing.
2. Movement: The rod has enough usable travel to clear the surface when raised and enter the receiver when lowered.
3. Receiver: A stable, aligned hole, sleeve, socket, center stop, or header catch establishes the gate’s position.

That framework is more useful than relying on overall length or labels such as “heavy duty.” It also keeps gate stabilization separate from access control: a basic gravity rod may hold a leaf in position without functioning as a high-security lock.

What a gate cane bolt is—and what it does not do

A gate cane bolt is a vertical metal rod mounted in one or more guides on a gate or large door. Lowering the rod into a prepared ground hole, sleeve, socket, or center stop restrains the leaf. On a compatible door installation, the same concept can work upward into a header receiver.

Operation is usually gravity-based:

1. Rotate or release the raised rod from its retaining bracket.
2. Lower it through the guides and into the receiver.
3. To move the gate, lift the rod clear.
4. Rotate it or engage its retention mechanism so it stays raised during the swing.

Product names are not standardized consistently. Cane bolt, drop rod, and drop bolt often describe overlapping types of vertical hardware; gate anchor is also used for similar products. Nuvo Iron, for example, says cane bolt, drop bolt, and gate anchor are commonly used interchangeably while advising buyers to check project-specific suitability (Nuvo Iron’s cane-bolt overview).

Do not confuse a gate cane bolt with these related products:

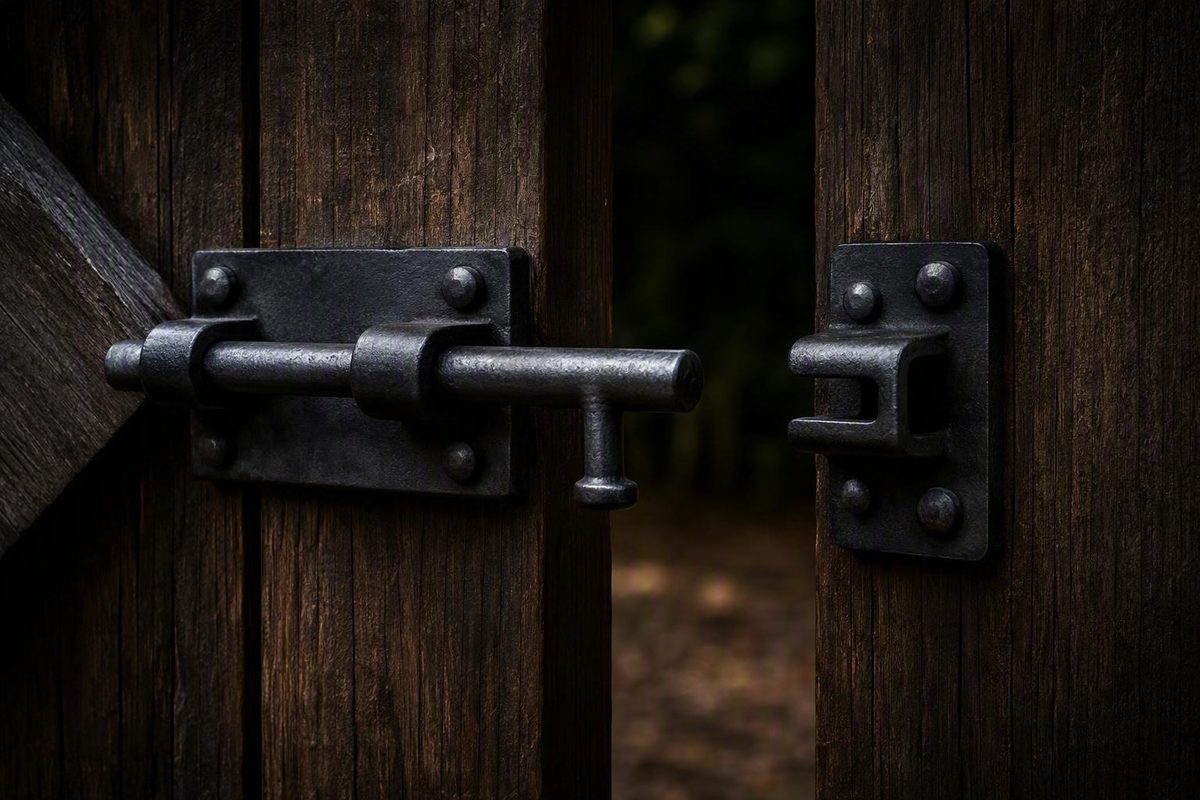

• Horizontal slide bolt or barrel bolt: Moves sideways into a keeper on a post, frame, wall, or adjacent leaf.
• Surface bolt: Mounts on the face of a gate or door and usually engages an adjacent fixed surface.
• Flush bolt: Is recessed into a door or gate edge rather than surface-mounted.
• Foot bolt: Is generally shorter and operated with a pedal or foot tab.
• Central latch: Connects two leaves or secures an active leaf to a fixed keeper. On a double gate, it performs a different job from the drop rod.

A basic cane bolt retains or stabilizes a gate leaf. It does not automatically provide meaningful resistance to forced entry. If the rod or retaining handle is accessible, someone may be able to lift or manipulate it.

Some models address that limitation with a padlockable bracket or integrated keyed mechanism. Those features are product-specific, and a padlock may be sold separately. Even then, security depends on the complete assembly: gate construction, bracket attachment, receiver strength, lock design, access from the unsecured side, and resistance to bypass. Where forced-entry resistance matters, use a suitably rated locking system rather than assuming a gravity rod is a tested lock.

Where a cane bolt belongs on single and double gates

The most common location is the inactive leaf of a manual double gate. The cane bolt anchors that leaf to the ground, turning it into a stationary surface. The active leaf then closes against it and is secured by a separate central latch or lock.

A simple closed-gate layout looks like this:

Hinge post | Inactive leaf ↓ | Center receiver | Active leaf | Hinge post
                         cane bolt      ↕
                                  separate latch

The operating sequence matters. First lower the cane bolt on the inactive leaf. Then close and latch the active leaf against it. To open the full width, release the active leaf, raise and retain the cane bolt, and swing the inactive leaf.

This is common practice, not a rule that every manual double gate must follow. Some assemblies use different fixed stops, latching arrangements, or proprietary hardware. A contractor’s guide describes the usual arrangement as a vertical rod and ground-mounted center stop anchoring one leaf so the other can latch to it (Mustang Fencing Services’ drop-rod guide).

A cane bolt can also retain a gate open. Install a second receiver at the gate’s stable open position, aligned with the rod’s actual path. This can keep a leaf from rolling back or swinging from its intended position. Establish the resting location before creating the receiver, and screen the proposed location for interference with normal walking, driving, and maintenance routes.

One rod is often enough for a double gate because only the inactive leaf needs to become stationary. A bolt on each leaf may make sense when:

• either leaf must be restrained independently;
• the opening is sometimes used from one side and sometimes from both;
• each leaf needs its own open-position catch;
• the central latching arrangement requires independent positioning.

Two rods are not automatically better. They add another receiver and another alignment point to maintain.

Other applications include:

• Single gates: Especially where no convenient post-mounted keeper exists or an open-position hold is needed.
• Livestock and tubular farm gates: Provided the brackets fit the tube profile and the receiver suits the surface.
• Garage, enclosure, barn, or large double doors: Where one door must be retained while the other operates.
• Upward installations: A compatible model may be top-mounted so its rod enters a header. One adjustable stainless-steel product specifically permits upward installation, but this should not be assumed for every bolt (Hoover Fence’s adjustable cane-bolt specifications).

Interior mounting is common because it keeps the operating handle on the controlled side. Actual placement depends on gate swing, left- or right-hand access, frame geometry, bracket orientation, and receiver location. During layout, confirm that the user can reach and operate the handle without placing a hand or arm where the moving gate could trap it.

Treat an automated gate as a separate design problem. Do not add a manual rod merely because it fits. A deployed rod may conflict with the operator, while a raised rod or added stop may alter clearances. Available contractor guidance treats automated arrangements differently but does not establish universal compatibility rules, so consult the operator instructions and the system installer before adding a manual restraint.

Choose the bolt by usable throw, frame, and environment

A useful buying decision starts with the three connected parts of the system rather than the product name.

1. Attachment to the gate

Identify where the upper and lower guides will attach. The location must be structurally sound, large enough for the bracket footprint, and compatible with the specified fasteners. Check:

• gate material;
• frame thickness;
• flat, square, or round frame profile;
• bracket dimensions and hole spacing;
• room for nuts, washers, or backing plates;
• whether welding, through-bolting, screws, or U-bolts are permitted;
• left/right or top/bottom mounting restrictions.

For wood, fasten into sound framing rather than a thin board edge or decorative facing. Avoid placing screws in split, decayed, or unsupported material.

Depending on the gate and hardware instructions, they may need an internal insert, backing plate, rivet nut, through-bolt arrangement, or another approved reinforcement method. A fastener intended for solid wood should not automatically be assumed suitable for a hollow profile.

One listed zinc-steel model is 17 inches long, uses a 3/4-inch rod, and includes U-bolts, nuts, and washers for a 2-inch round frame; fasteners for a flat frame are not included (HardwareSource’s round- and flat-frame cane bolt). This illustrates why “mounting hardware included” is not enough—ask what hardware is included and which frame it fits.

2. Movement of the rod

The rod must satisfy both conditions:

• Raised: Its bottom clears the ground, receiver, and every surface along the swing.
• Lowered: It enters the receiver far enough to establish the intended position.

Measure clearance with the gate fully closed and at every intended open position.

Visible retail examples in the supplied assortment run from 12 to 48 inches in overall length, with rods from approximately 1/2 to 3/4 inch in diameter. Those examples do not create a universal sizing formula or establish comparable load capacity across products (Tractor Supply’s cane-bolt and drop-rod assortment).

A shorter bolt can suit a low-clearance walk gate. Diameter alone does not prove how much force the installed system can withstand.

Before buying, verify:

• total rod length;
• actual usable drop or throw;
• rod diameter;
• required receiver clearance and engagement;
• guide spacing;
• bracket footprint;
• retention-tab or handle clearance;
• frame thickness or tube diameter;
• permitted mounting orientation;
• included fasteners and receiver components;
• availability of guides, sockets, keys, or other replacement parts.

The available listings do not provide a supported formula that converts those factors into a required rod length, diameter, or load rating. If the application depends on quantified holding strength, ask the manufacturer for documented performance data.

3. Environment and material

Available listings include zinc-finished steel, powder-coated steel, iron, bronze, 304 stainless steel, and 316 stainless steel. These are material or finish descriptions, not guarantees of service life.

For example, one adjustable product is offered in black powder-coated 304 stainless steel or natural-satin 316 stainless steel, with the latter described by the seller as “marine-grade.” The same product uses a 5/8-inch rod and is offered in 18-, 24-, and 36-inch lengths (Hoover Fence’s product listing). Those specifications do not prove that every component will last for a particular period in coastal exposure.

For wet, coastal, pool-adjacent, or deicing-salt conditions, ask for:

• documented alloy grade;
• coating type and surface preparation;
• corrosion-test information, if available;
• fastener material and compatibility;
• treatment requirements for cut, drilled, or welded areas;
• maintenance and cleaning instructions;
• warranty exclusions;
• replacement-part support.

Choose the guides, fasteners, receiver, and rod for the exposure rather than evaluating the visible rod alone.

Basic, adjustable, spring-loaded, and lockable designs

Features matter when they solve a measured installation problem. Decorative names and promotional grades do not.

Basic gravity rod

The simplest cane bolt has a straight rod, one or two guides, and a bent handle or side ears. Gravity lowers the rod into the receiver. To release it, the user lifts and turns it so a tab rests on or engages a notched guide.

This design has few moving components and is easy to inspect. It still requires correct guide spacing, enough raised clearance, and an aligned receiver.

Retention tabs or ears

Tabs pass through or around a notched upper guide. Rotating the raised rod lets the tabs rest on the guide, keeping the lower end off the ground while the gate moves.

Check the complete motion before drilling. The rod needs enough vertical space to lift its tabs through the guide and enough rotational clearance for the handle. A nearby picket, board, hinge, or latch can obstruct the movement even when the straight rod appears to fit.

Adjustable-drop designs

An adjustable model allows the effective lowered position or assembly geometry to be tuned. This can help when fixed bracket locations, lumber thickness, or ground clearance make a one-piece rod awkward.

Adjustment range and method are product-specific. Determine whether the adjustment changes actual throw, bracket position, handle height, or only the connection between rod sections. Also check how the adjustment is secured against movement in service.

Long-throw models

A long-throw cane bolt provides greater rod travel. That may help with a high gate bottom, a deeper receiver, or an installation where the operating handle must remain reachable.

More travel is not automatically better. The rod still has to clear the highest point in its swing when raised, and a long unsupported section may interfere with surrounding hardware. Base the decision on measured raised and lowered positions.

Spring-brake designs

Some livestock-gate hardware uses a spring brake and release lever instead of a simple retention ear. HardwareSource lists one model whose brake can hold the rod at different positions; pressing a lever releases it. The retailer also promotes the model for limiting swing or sag, but provides no independent test or load rating for those performance claims (HardwareSource’s spring-brake model).

A spring brake may be useful where variable rod positioning is needed.

Padlockable and key-lockable models

A padlockable bracket captures the rod or handle with a separate padlock. Verify the shackle size, operating clearance, locking position, weather exposure, and whether the padlock is included.

An integrated key-lockable drop rod combines the restraint and key mechanism. This can make operation tidier, but it adds cylinders, keys, and maintenance requirements. Confirm handing, key access, rekeying options, replacement cylinders, and whether the mechanism is operable from one or both sides.

Neither format establishes a particular security level without documented testing. If forced-entry resistance matters, specify a suitable access-control system and examine how the gate, posts, hinges, latch, rod, receiver, and exposure from the unsecured side work together.

Compatibility features that can be genuinely useful

Look for these when the installation requires them:

• reversible left/right mounting;
• approved top mounting into a header;
• U-bolts sized for round tubing;
• guides intended for a particular gate profile;
• adjustable bracket geometry;
• replaceable receivers;
• included fasteners compatible with the substrate.

Treat “heavy duty,” “professional grade,” “robust,” and “marine grade” as marketing labels unless the seller also supplies dimensions, material specifications, load data, corrosion testing, warranty terms, and installation requirements.

Retail specification checklist

• Usable throw: ___
• Rod diameter: ___
• Upper/lower bracket dimensions: ___
• Gate substrate and frame profile: ___
• Required fasteners or backing: ___
• Receiver type and dimensions: ___
• Material, alloy, and finish: ___
• Left/right/top mounting compatibility: ___
• Lock provision: ___
• Included components: ___
• Replacement parts available: ___

Select a receiver for concrete, asphalt, gravel, or soil

The receiver is a working component, not an optional hole beneath the gate. Without a stable catch point, the rod cannot return to a repeatable position. A receiver that shifts, fills with debris, freezes, or stands above the surrounding surface can make otherwise suitable hardware difficult to use.

No reliable universal dimensions emerge from the available evidence. Hole width, depth, edge distance, sleeve embedment, and required rod engagement depend on the product, surface, gate geometry, climate, and expected forces.

Sound concrete

A general concrete sequence is:

1. Close or position the gate naturally.
2. Lower the mounted rod to mark its actual center.
3. Pause if the drilling area has uncertain concealed conditions or is close to an edge, joint, footing, or other structural feature.
4. Drill with a suitable masonry bit.
5. Form the direct hole or install the specified sleeve or socket.
6. Clean the work area and test engagement.

Manufacturer guidance identifies a masonry bit for concrete but leaves exact diameter, depth, embedment, and anchoring product-specific (Old West Iron’s installation overview). Follow the selected bolt or receiver instructions rather than estimating solely from nominal rod diameter.

Possible concrete receivers include a directly drilled hole, inserted sleeve, socket, pipe section, or purpose-made center stop. A sleeve may provide a cleaner or replaceable interface, but it still has to remain secure and suit the surrounding route.

The supplied installation guides do not resolve buried-service detection, reinforcement location, or structural drilling limits. Treat those as site-screening issues rather than assumptions: identify relevant concealed conditions through appropriate local services, records, or professional advice before drilling where uncertainty exists.

Asphalt

Depending on the site and selected receiver, a designed footing or collar may be needed below or through the asphalt.

Assess the paving construction, expected traffic, water movement, and seasonal conditions. Receiver dimensions remain site- and product-specific.

Gravel, dirt, and other loose surfaces

In loose material, the main issue is lateral movement.

A stabilized sleeve, pipe, socket, or purpose-made center stop can create a defined target. A concrete collar or other footing may be appropriate, but its size and depth should be based on the site, receiver instructions, soil, climate, drainage, and expected use—not a universal rule.

Rocky soil

Probe and prepare the proposed location before placing a sleeve. Driving pipe blindly into rocky ground can deflect it, leaving the opening crooked or offset. In one documented DIY installation, the pipe struck rock and ended up angled, although the rod still entered it (Woodified’s double-gate cane-bolt installation).

Where precise alignment matters, excavating and setting the receiver deliberately is more controllable than driving it without seeing the obstruction.

Slopes and changing clearance

On sloped ground, trace the rod’s vertical path through the entire swing before choosing the hardware. Measure:

• bottom clearance when closed;
• clearance at intermediate swing points;
• clearance at the intended open position;
• lowered travel needed at each receiver;
• room to lift and rotate the handle.

One rod may not serve two receiver locations if the surface elevations differ beyond its usable travel.

Drainage, ice, frost, and debris

Basic installation guides largely leave these site conditions unresolved. Consider them during design:

• Will the receiver collect water?
• Could water or debris obstruct rod entry?
• Is seasonal soil or surface movement likely to alter alignment?
• Can gravel, leaves, mud, or deicing material fill the opening?
• Can the receiver be cleaned without dismantling the gate?
• Do the product instructions specify cleaning, drainage, or corrosion precautions?

A larger hole is not a complete solution.

Path and site screening

Where the selected design permits, use a flush receiver or keep the catch point outside normal walking and driving routes. A locking-cane-bolt installation guide similarly describes placing the socket flush with the ground, although exact installation details remain product- and surface-specific (Wild West Hardware’s installation guide).

Before committing to a location, screen it for:

• interference with normal foot or vehicle travel;
• contact with tires, mowers, snow equipment, or other machinery;
• snagging on footwear, hoses, leads, or equipment;
• exposed sharp edges;
• access for cleaning and maintenance;
• hand-clearance issues near the moving gate.

These checks do not establish accessibility or code compliance. If the receiver affects a regulated route or a site with uncertain structural or concealed conditions, obtain project-specific guidance.

How to install and align a gate cane bolt

The exact fasteners, hole dimensions, and receiver details come from the selected product. The following sequence focuses on alignment and avoids locking in errors too early.

1. Inspect the gate first

Check the posts, hinges, frame, fasteners, and natural closed position. Look for:

• leaning or moving posts;
• loose or worn hinges;
• a twisted frame;
• split or decayed wood;
• distorted hollow sections;
• a gate that sags or changes position when lifted;
• a latch that pulls the leaves unnaturally into alignment.

Repair structural faults first. A cane bolt can hold a sound gate at a defined point; it should not be used to conceal failed hinges, weak framing, or an unstable post.

2. Choose the leaf and mounting side

For a typical manual double gate, choose the inactive leaf. Confirm which side will be controlled, where the user will stand, and how the active leaf’s central latch will engage.

Check handle access and trace the rod through the entire swing. Do not judge clearance only at the fully closed and fully open endpoints.

3. Mock up the complete assembly

Hold the assembled bolt and guides against the gate. Test:

• fully raised position;
• fully lowered position;
• handle rotation;
• retention-tab or brake operation;
• bracket spacing;
• receiver reach;
• interference with boards, pickets, hinges, and latches.

If practical and permitted by the product instructions, clamp or temporarily secure the guides. Do not assume the package drawing accounts for your gate’s actual clearance.

4. Position the lower guide

Where the product permits, position the lower guide first so it supports the rod near the lower frame and aligns with structural backing. Mark the holes.

Drill pilot holes appropriate for the substrate and fasteners. In wood, avoid oversizing the pilot. On hollow or thin sections, use the specified insert, backing, through-bolt, or reinforcement method rather than fastening only to the outer skin.

5. Align the upper guide

Place the upper guide so the rod remains vertical and moves without binding. Preserve enough upward travel for the retention tabs, handle, or release mechanism to work.

If the instructions allow, begin with limited fastening—such as one fastener in an adjustable position—so small horizontal and vertical corrections remain possible. A documented DIY installation used one upper-bracket screw initially, then adjusted and tested the assembly before final fastening (Never Stop DIY’s cane-bolt installation demonstration).

6. Test before final tightening

Cycle the rod repeatedly. It should move freely without excessive side play. Raise and retain it, then swing the gate slowly through its full path.

Adjust the guides until the raised rod clears every surface and the lowered rod points consistently toward the intended receiver. Tighten progressively, checking that the brackets do not crush or distort the frame.

7. Mark from the actual rod

Close the gate in its natural, correctly latched position. Do not force it sideways to match a measurement taken from a post or board edge.

Extend the rod and mark the receiver center directly from its tip. This captures the actual gate position, including small differences in frame construction and hinge geometry.

8. Prepare the receiver

Use the product instructions and surface-appropriate tools:

• a masonry bit and specified sleeve or socket for concrete;
• a secured center stop or site-appropriate footing for asphalt;
• a stabilized sleeve, pipe, socket, or center stop for soil or gravel;
• a compatible header receiver for an approved top-mounted installation.

Before drilling or excavation, pause if concealed services, slab construction, structural conditions, or route requirements are uncertain. The cited product and DIY guides do not resolve those conditions universally, so obtain appropriate site-specific information rather than guessing.

9. Commission the closed position

Lower the rod into the receiver. Confirm:

• smooth entry without forcing;
• engagement consistent with the product instructions;
• limited unwanted leaf movement;
• no guide distortion;
• proper operation of the retaining or locking feature;
• correct interaction between inactive leaf, active leaf, and central latch.

If the rod enters only when the gate is lifted, pushed, or twisted, correct the gate or alignment rather than accepting the strain.

10. Add an open-position receiver if needed

Move the gate to a stable open position and repeat the marking process from the actual rod. Check the full operating route and maintenance access before creating the second receiver.

11. Complete the final checks

Before putting the gate into service:

• tighten all hardware according to the product instructions;
• verify that tightening did not distort the frame or bind the rod;
• remove drilling debris and sharp edges;
• clean the receiver;
• confirm full raised clearance;
• test open and closed receiver engagement;
• test the retainer, padlock, or key mechanism;
• confirm that the main latch operates as intended;
• retain the manufacturer’s instructions and key information.

Seek project-specific professional help when uncertain slab conditions, concealed services, automated operators, large or unstable gates, unfamiliar welding, substantial reinforcement, or structural post and hinge repairs are involved. This is a scope-of-work precaution, not a substitute for local requirements or product instructions.

Troubleshooting, maintenance, alternatives, and cost

A rod that stops aligning is often reporting movement somewhere else in the system. Diagnose the gate, attachment, and receiver before modifying the hole.

Symptom	Likely causes	What to check or do
Rod misses the receiver	Gate sag, post movement, hinge wear, loose guides, shifted sleeve, slab or soil movement	Check gate position and hinge play; tighten or repair structural parts; confirm guide alignment and receiver stability before enlarging the opening
Rod drags while raised	Insufficient usable lift, slope, debris, incorrect guide spacing, slipping retainer	Measure clearance through the full swing; clean the path; reset the guides; inspect the retaining parts
Rod sticks or binds	Debris, water, ice, corrosion, bent rod, distorted or misaligned guides	Clean and inspect the rod and receiver; realign guides; follow product-specific lubrication guidance
Rod rattles	Excess guide clearance, loose brackets, enlarged receiver, worn parts	Tighten sound fasteners; replace worn guides or receivers; avoid distorting hollow framing
Rod will not remain raised	Tabs not fully engaged, notched guide installed incorrectly, worn retainer, spring-brake fault	Verify assembly orientation and full lift or rotation; inspect and replace damaged retaining parts
Alignment repeatedly changes	Moving post, failing hinge attachment, flexible frame, unstable receiver, slab or soil movement	Find and repair the source of movement rather than repeatedly relocating the rod or widening the hole

For a missed receiver, inspect the posts and hinges first. Lift gently at the latch side and watch for hinge play. Check whether the frame has sagged, bracket screws have loosened, or the receiver has shifted.

For sticking, remove mud, gravel, leaves, standing water, and ice. Inspect the rod for bends and coating damage, and check whether tightening the brackets distorted the guides. Follow the bolt or lock manufacturer’s lubrication instructions; a lubricant suitable for an exposed sliding rod may not suit every keyed cylinder.

Loose brackets require more than another turn of the screwdriver. Determine whether the fastener is loose in sound material or has stripped damaged, decayed, hollow, or thin substrate. Repair or reinforce the mounting area and replace unsuitable fasteners.

Maintenance routine

Periodically:

• cycle the rod and retention mechanism;
• clear all receivers;
• check guide and bracket fasteners;
• inspect the gate for sag and hinge wear;
• look for bent rod sections, cracked welds, rust, and coating damage;
• verify that sleeves remain stable and do not obstruct the route;
• test padlocks or keyed mechanisms;
• follow the manufacturer’s cleaning and lubrication instructions.

Also inspect the assembly after impacts, gate repairs, pavement work, or visible surface movement because any of those changes can alter alignment.

When another type of hardware is better

Choose by function:

• Foot bolt: Useful when short pedal operation is more convenient than lifting a long rod.
• Slide, barrel, or surface bolt: Appropriate when the bolt can engage an adjacent post, wall, frame, or stationary leaf.
• Flush bolt: Useful when recessed door hardware is preferred or projecting hardware would interfere.
• Padlock, deadbolt, or keyed latch: Better suited to access control, subject to the product’s rating and the strength of the surrounding gate.
• Structural repair: Required when the real issue is a leaning post, failed hinge, sagging frame, or unstable supporting surface.
• Operator-compatible restraint: Appropriate when an automated gate system specifies a particular stop, lock, or control arrangement.

If resistance to forced entry matters, use a separate suitably rated lock or latch and evaluate the complete perimeter. An exposed gravity rod should not be represented as tested security.

What a cane bolt costs

Retail pricing varies considerably and changes over time. In the retailer listing accessed on September 6, 2026, visible individual cane bolts ranged from approximately $53 to $893, including different lengths, brands, materials, finishes, and specialized bronze designs. That point-in-time assortment is not a normal or durable market range (Martell Hardware’s cane-bolt category).

Compare the complete installed cost:

• rod and guide assembly;
• compatible fasteners;
• backing or frame reinforcement;
• sleeve, socket, or center stop;
• footing or pavement work;
• masonry bits and other tools;
• padlock or keyed hardware;
• professional labor;
• replacement guides, keys, or cylinders;
• cleaning, corrosion maintenance, and realignment.

A low-priced rod is not inexpensive if it requires improvised reinforcement, repeated receiver repairs, or replacement because its geometry never suited the gate.

Buy a cane bolt when:

• the gate has sound structural material for mounting;
• the rod can clear the surface throughout the swing;
• usable throw is sufficient at every intended catch point;
• a stable, aligned receiver can be placed without interfering with normal use;
• the purpose is clearly gate retention or stabilization.

Reconsider the purchase when:

• the gate is sagging or structurally unstable;
• forced-entry resistance is the main goal;
• the proposed receiver conflicts with a walking or driving route;
• an automated operator has not been checked for compatibility;
• no sound attachment point or stable receiver location exists.

Gate cane bolt FAQs

Is a gate cane bolt the same as a drop rod or drop bolt?

Usually, yes. Retailers and manufacturers commonly use cane bolt, drop rod, and drop bolt for overlapping types of vertical gate hardware. Gate anchor is another common label.

Product categories are inconsistent, however, and may also contain guides, center stops, slide bolts, or barrel bolts. Verify that the item is a vertical rod designed to engage a ground or header receiver, and check whether the listing includes the complete assembly.

Which leaf of a double gate should have the cane bolt?

Normally, install it on the inactive leaf—the leaf that remains closed during routine access. The rod anchors that leaf so the active leaf can latch against a stationary surface.

If either leaf needs to be held independently, a bolt on each may be useful. Two rods are not universally required.

Can a cane bolt hold a gate open as well as closed?

Yes, provided there is a correctly aligned receiver at each intended position. Use one receiver for the closed position and a second at the gate’s stable open position.

Check raised clearance over the entire swing and screen the additional receiver location for interference with normal walking, driving, and maintenance.

Can I install a cane bolt on wood, vinyl, metal, or round farm-gate tubing?

Potentially, but the mounting method must suit the frame. Wood requires sound structural framing. Hollow vinyl/PVC, aluminum, and thin metal may need an approved insert, backing plate, through-bolt arrangement, or other reinforcement.

Round farm-gate tubing generally requires correctly sized U-bolts or purpose-made clamps. Confirm the bracket footprint, frame dimensions, permitted fasteners, and included hardware before buying.

Does a cane bolt count as a secure gate lock?

Not by itself. A basic cane bolt is primarily a positioning and stabilization device, and an accessible rod may be lifted or manipulated.

Padlockable and key-lockable versions are available, but their security still depends on the gate, attachment, receiver, lock, and exposure from the unsecured side. When forced-entry resistance matters, use a suitably rated locking system designed for that purpose.

The final decision is a three-part test: confirm that the gate provides a sound structural mounting point, choose a rod with enough usable travel for every intended position, and build a stable, aligned receiver suited to the surface. If the actual problem is sag, forced-entry resistance, unsafe receiver placement, or automated-gate compatibility, address that issue directly instead of expecting a basic cane bolt to solve it.
