Is a Two-Leaf Driveway Gate Right for Your Property?
A double swing gate can suit a wide driveway, farm entrance, or small commercial access point when the property provides a clear operating path for both leaves. Dividing the opening reduces the swing depth of each leaf, but it also creates two hinge-side support systems and a moving center joint that must remain aligned.
The decision should therefore begin with site geometry rather than appearance. Establish the required clear opening, finished grade, approach angle, swing paths, wind exposure, and vehicle waiting position. Then evaluate the frame, infill, posts, foundations, hardware, and automation one leaf at a time.
This guide is for product comparison and quote planning. Structural design, automated-gate safety, utility location, permits, emergency access, and legal compliance must be determined from the selected manufacturers, qualified professionals, and authorities responsible for the property.
What a double swing gate is—and what changes when one opening becomes two leaves

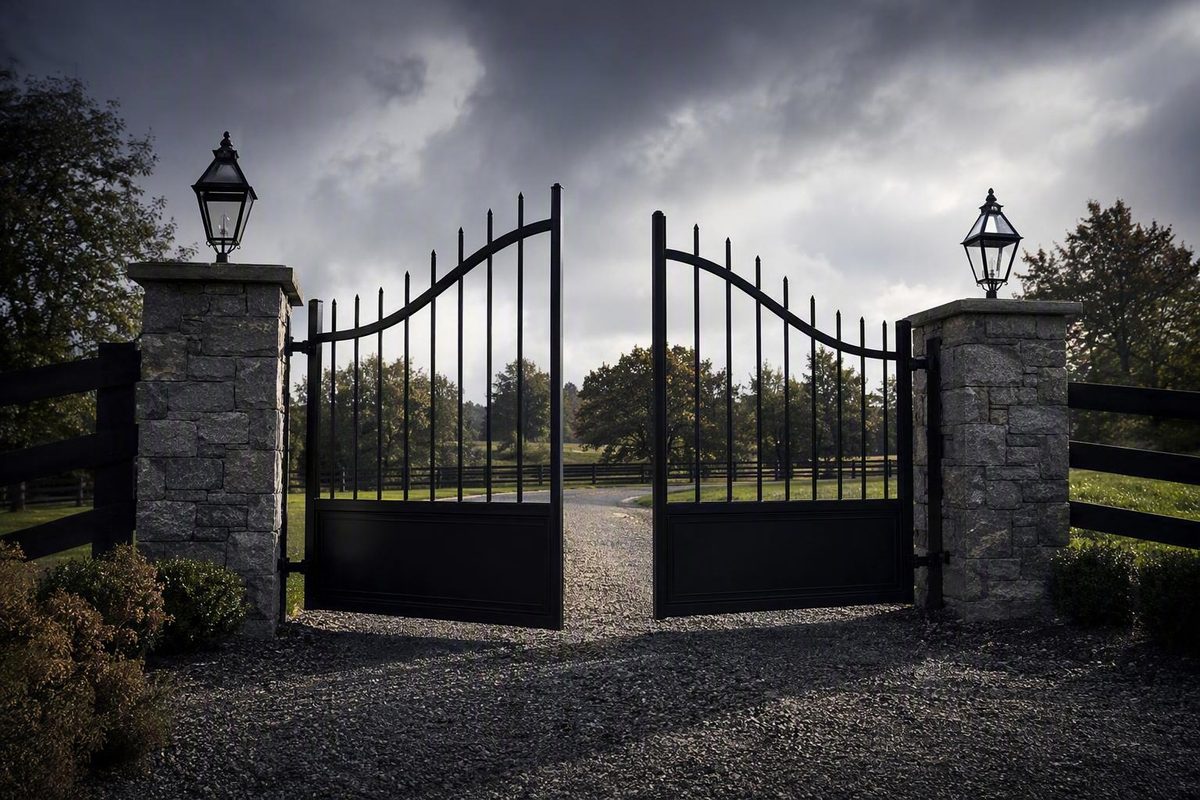

A double swing gate consists of two hinged leaves that meet near the center of an entrance. Each leaf hangs from its own hinge post. When closed, the leaves are joined or stabilized by some combination of a latch, lock, center stop, drop bolt, cane bolt, or other system-specific hardware.
The leaves are the moving gate panels. They should not be confused with the stationary posts, hinges, foundations, receivers, or center-closure hardware that support and control them.
On a manual gate, the hardware may allow either one leaf or both leaves to open. One leaf might provide routine pedestrian or small-equipment access, while both are opened for a vehicle. Whether that arrangement works depends on the latch, bolts, stops, and locking method.
Example: a 12-foot opening
- One approximately 12-foot single leaf needs roughly a 12-foot swing radius.
- Two approximately 6-foot leaves each need roughly 6 feet of swing depth.
- Final fabrication and post dimensions must account for the selected hinges, side allowances, and center gap.
This example illustrates the main space advantage of a double gate: it divides one large arc into two shorter arcs. It does not establish finished leaf dimensions or post spacing. Aberdeen Gate uses the same comparison and notes that a double gate needs additional hinges, bolts, hinge-side supports, and an operator for each leaf when automated (see the single, double, and sliding comparison).
The shorter arcs remain complete operating zones. The selected gate and operator instructions must be used to determine the required clear area and where vehicles or people may safely wait.
Compared with a single swing gate, a two-leaf system generally adds:
- A second hinge-side post and support system
- A second hinge set
- Another leaf to hang and align
- A moving center joint rather than one moving edge meeting a fixed receiver
- Additional closure or stabilization hardware
- Usually a second operator when automated
A divided gate is not inherently stronger, safer, more secure, or more resistant to wind. Those outcomes depend on the frame, infill, fasteners, hinges, posts, foundations, operator system, engineering, and installation.
Start with the site: opening width, swing arcs, slope, wind, and vehicle position
Begin with a site survey rather than a catalog width. A nominal “12-foot gate” may describe an opening category, panel combination, or seller-defined size. It does not automatically identify the fabricated width of each leaf or the required post-to-post distance.
Use this preliminary planning checklist:
- Measure the required clear opening for expected vehicles and equipment.
- Identify the property line and ask the relevant authority about any setback.
- Mark the proposed position of both hinge posts.
- Draw or mark the complete travel arc of each leaf.
- Identify the intended closed, partially open, and fully open positions.
- Ask the gate or operator supplier where vehicles and people may wait.
- Record the grade throughout each arc.
- Note wind exposure, drainage, frost conditions, and uncertain soil.
- Identify existing posts or foundations that require professional evaluation.
- Ask the appropriate utility-location service what must happen before excavation.
Examine the complete operating area
Walk both proposed arcs and record possible conflicts, including:
- Parked or waiting vehicles
- Walls and adjoining fences
- Trees, shrubs, planters, and future landscaping growth
- Curbs, bollards, and utility cabinets
- Pedestrian routes
- Transitions between gravel, pavement, and soil
- Raised thresholds and drainage channels
- Snow-storage areas
- Trash enclosures and delivery areas
- Seasonally parked equipment
- Road shoulders, sidewalks, and cycle routes
Check above the gate as well as below it. Terrain may interfere with the bottom edge, while branches, signs, lighting, or operator components may conflict elsewhere in the travel path.
Keep three width measurements separate
A useful plan distinguishes:
- Clear opening width: the usable passage when the gate is open.
- Post-to-post distance: the installed space between the hinge posts.
- Fabricated leaf width: the physical width of each moving panel.
These dimensions are related but not interchangeable. Hinges can offset a leaf from its post, while the center may require a specified gap or overlap. Obtain those allowances from the fabrication drawing and the selected hinge and operator instructions.
Measure grade along each arc
A gate can have adequate clearance while closed and still scrape partway through its travel. On a driveway that rises inward, a conventional inward-opening leaf moves toward higher ground. Crowned or compound grades can make the clearance change continuously.
Record elevations at several points along each proposed arc and account for the finished surface rather than only the current rough grade. Paving, gravel replenishment, drainage work, and seasonal ground movement may alter clearance.
Possible design responses include changing the opening direction, revising the gate geometry, increasing ground clearance, using a compatible specialized hinge arrangement, or investigating a sliding gate. These are system-specific decisions: added ground clearance may conflict with containment or appearance goals, while specialized hardware must be compatible with the gate and operator.
Include vehicle approach geometry
The opening must accommodate the way vehicles actually turn through it. A straight driveway and an angled approach may require different clear openings for the same vehicle.
Trace the path of the longest and widest expected vehicles, including trailers, delivery trucks, tractors, or implements. Ask the designer to confirm that those vehicles can clear the posts without entering a leaf’s operating path. A wider opening may help a curved approach, but it also changes leaf dimensions, structural loads, and hardware requirements.
Treat wind and foundations as design inputs
Solid timber, composite, or sheet-style infill presents a different wind profile from chain-link mesh or widely spaced pickets. Gates with identical outside dimensions can therefore impose different demands on hinges, operators, posts, and foundations.
Width alone is not enough to specify those components. Contractor guidance likewise identifies slope, opening clearance, solid infill, and wind exposure as factors in choosing and designing a swing system (review the site factors for swing and sliding gates).
Request a site-specific assessment when the project involves large leaves, solid infill, exposed terrain, uncertain soil, frost, drainage problems, existing supports, or foundations of unknown construction. The assessor should identify the assumptions, calculations, product instructions, and local requirements used—not merely approve the gate by width.
Double swing vs. single swing vs. sliding: a property-based decision matrix
No movement type is universally best. The practical question is which configuration fits the property’s available space, terrain, traffic pattern, structural requirements, and budget.
| Planning factor | Single swing | Double swing | Sliding |
|---|---|---|---|
| Front-to-back space | Requires one full-width arc | Requires two shorter arcs | Avoids a broad swing arc |
| Lateral runback | Usually limited | Usually limited | Requires space beside the entrance |
| Slope | One leaf may scrape as it moves uphill | Each arc must be checked independently | May help where swing leaves cannot clear grade |
| Approach angle | One large leaf can conflict with turning vehicles | Two arcs reduce individual depth but still affect turning | Keeps swinging leaves out of the opening |
| Moving gate sections | One leaf | Two leaves | One or more sliding assemblies |
| Typical automation | One operator | Usually one coordinated operator per leaf | Operator matched to the sliding system |
| Alignment focus | Moving edge meets a fixed receiver | Two moving center edges must meet | Track, rollers, guides, or cantilever components must align |
| Structural focus | One hinge post supports the leaf | Two hinge posts support separate leaves | Runback supports, guides, track, or cantilever foundation |
| Main cost categories | Leaf, hinges, post, operator | Two hinge systems, center hardware, two operators | Track or cantilever structure, guides, operator, site work |
When a single swing gate makes sense
A single gate has fewer hinge systems and generally needs one operator when automated. Its closure may also be simpler because the moving edge can meet a fixed post or receiver.
The tradeoff is one full-width swing radius and one leaf’s load acting through one hinge-side support system. The frame, hinges, post, and foundation must be specified for that leaf. There is no universal width at which every single swing gate becomes impractical.
When a double swing gate is persuasive
The strongest case is a property with:
- A wide entrance
- Two usable operating arcs
- Insufficient depth for one full-width arc
- Space for properly designed supports at both sides
- A closure plan that can maintain center alignment
A double gate does not cure inadequate foundations, wind exposure, or difficult pavement. It changes the movement geometry and divides the opening between two leaves.
When to investigate a sliding gate
A sliding gate moves laterally beside the entrance instead of sweeping across the driveway. It may be more practical when a wall, vehicle queue, pedestrian area, or upward grade prevents swing leaves from moving freely.
Sliding gates still require sufficient runback space. Commercial comparisons describe the broad space distinction, but suitability still depends on the selected sliding system and the site—not on a blanket assumption that sliding works everywhere (compare swing and sliding space requirements).
A concise decision tree
-
Can two correctly sized leaves complete their arcs without site conflicts? If yes, a double swing gate remains a candidate.
-
Is one full-width arc available, and can one leaf be properly supported? If yes, compare the mechanically simpler single-swing arrangement.
-
Do swing depth or grade rule out both options? Investigate tracked and cantilever sliding systems, including lateral-space, surface, and foundation requirements.
Appearance is subjective. Claims of universal superiority in security, durability, or cost should not determine the configuration.
Materials, grades, dimensions, and why no universal maximum width exists
Material affects leaf weight, privacy, finish care, fabrication, wind exposure, and hardware. It does not determine suitability on its own.
| Material or infill | Planning characteristics |
|---|---|
| Open chain-link | High visibility and open infill; frame and fabric specifications vary by grade |
| Ornamental or picket steel | Open or partly open; weight and corrosion protection depend on sections, spacing, and finish |
| Aluminum | Often considered where material weight or corrosion exposure matters; frame and connection design still control performance |
| Timber | Provides visual mass and privacy but may move with moisture and seasons; fasteners, bracing, and clearances matter |
| Composite | Can provide privacy and a consistent finish; assembly and movement allowances are system-specific |
| Solid sheet or panel | Provides privacy but exposes a broad surface to wind; structure and automation require project-specific review |
For more detail on wire specifications and finish terminology, see this overview of chain-link gauges, coatings, and costs.
As one retailer example, Hoover Fence lists residential double gates up to a stated 12-foot opening, commercial versions up to 24 feet, industrial versions up to 30 feet, and an all-aluminum range from 10 to 20 feet wide. The residential examples use 1-3/8-inch, 0.065-wall steel frames with several fabric gauges; commercial versions use 1-5/8-inch HF20 frames with 9-gauge fabric; and industrial versions use 2-inch HF40 frameworks with 9-gauge fabric. Galvanized, selected color-coated, mill-finish, and aluminum choices vary by model (compare the listed chain-link gate grades and configurations).
These are retailer product ranges, not universal safe spans. A listing for a 24- or 30-foot opening does not establish that any frame, post, hinge, foundation, or operator can support a gate of that width.
At the ornamental end, StandardGates displays a made-to-order, 20-foot-wide, 6-foot-tall, dual-panel steel package. The selected listing describes an arch-style manual gate with double pickets, hinges, and two capped posts (see the configured steel gate example). It is a product example, not an industry standard for dimensions, structure, or price.
Timber and composite packages can differ substantially. A timber system may specify pilot holes, adjustable bands, edge gaps, and movement allowances. A composite product may use proprietary frame connectors, panel-insertion sequences, fasteners, locks, or wheels. Instructions for one system should not be transferred to another.
The practical limit for each leaf depends on:
- Frame section and bracing
- Leaf length and documented weight
- Infill type and openness
- Hinge type and attachment
- Post material and section
- Foundation design
- Wind exposure
- Operating frequency
- Operator geometry and capacity
- Fabricator or engineer requirements
Retail width menus are shopping filters, not structural approvals.
The hardware system: hinges, center closure, stops, bolts, and optional wheels
A manual double swing gate is a coordinated hardware system. A basic purchase checklist includes:
- Two compatible hinge systems
- Two hinge posts with suitable support
- A center latch, lock, or coordinated closure
- A positive closed-position arrangement or center stop where the design specifies one
- Drop bolts, cane bolts, or foot bolts suited to the operating method
- Ground receivers at the required positions
- Compatible fasteners
- Optional hold-open devices
- Wheels only where the gate design and travel surface permit them
Why center closure is different
A single leaf commonly closes against a fixed post. A double gate normally closes leaf against leaf. If either post moves, a foundation settles, or one leaf sags, the latch and keeper may stop meeting correctly.
The center must therefore be planned as one system involving leaf height, edge gap, stops, bolts, latch alignment, and—where automation is used—operator sequencing and lock integration.
Hinge choices
Fixed or preassembled hinges can simplify installation but may provide limited adjustment. Adjustable hinges can correct modest changes in leaf height or center alignment. Drop-on designs can simplify removal, but their alignment and any protection against unintended lift-off must follow the hardware manufacturer’s instructions.
Longer hinge leaves may spread attachment loads over more of the frame. They do not replace a verified capacity, frame reinforcement, or suitable fasteners. Abbey Hardware’s supplier guide distinguishes preassembled, adjustable, and drop-on arrangements and explains the center-latch and ground-bolt functions typical of double gates (review the double-gate hardware overview).
Bolts, receivers, and stops
A drop bolt, cane bolt, or foot bolt extends into a ground receiver to stabilize a leaf. In some manual arrangements, one leaf is secured first and the other latches against it; other designs use ground hardware on both leaves.
Plan receivers for every position in which the selected system calls for a leaf to be held, including open positions where applicable. Ask the supplier how the receivers must be installed and kept operable.
Wheels are conditional
A wheel may support some wide or heavy leaves, but it creates a required travel surface.
Do not use a wheel as a generic remedy for sag. First establish whether the frame, hinges, post, and foundation are adequate. If a wheel is proposed, obtain the permitted loading, surface, path, and maintenance requirements from the gate or wheel manufacturer.
Finally, audit the package contents. A photograph showing posts, hinges, a latch, or an operator does not establish that those components are included.
Automating two leaves: size the operator per leaf, not by total opening
An automated double swing gate generally uses a coordinated operator for each leaf.
Do not select an opener by dividing the total opening width in half and stopping there. Complete a worksheet for each leaf:
| Operator-sizing field | Leaf 1 | Leaf 2 |
|---|---|---|
| Actual fabricated length | ||
| Documented or estimated weight | ||
| Frame material and section | ||
| Infill type and openness | ||
| Required opening angle | ||
| Hinge offset and mounting geometry | ||
| Wind exposure | ||
| Expected cycles or duty | ||
| Available power arrangement | ||
| Manufacturer-approved operator model |
A long, light, solid gate and a short, heavy, open gate can impose different demands. Mounting geometry, wind, balance, opening angle, and operating frequency also matter.
As a retail example, TOPENS advertises dual-swing categories ranging from 300 pounds or 12 feet per leaf to 1,300 pounds or 20 feet per leaf. The collection includes AC and solar-equipped packages and displays accessories such as a vehicle sensor, reflective beam sensor, electric lock, keypad, push-button control, and HomeLink receiver. These are seller-stated categories and options that must be checked against the exact model, gate, geometry, and instructions (review the per-leaf categories).
An accessory listing does not prove that a package satisfies applicable safety or entrapment-protection requirements. The available evidence does not establish jurisdiction-specific automated-gate standards. Before design or purchase, ask the responsible authority, operator manufacturer, and qualified installer which current standards, local rules, protective devices, and testing obligations apply.
What to request in an automation quote
Ask the supplier or installer to state in writing:
- Exact operator model for each leaf
- Compatibility with actual length, weight, infill, and hinge geometry
- Control board and synchronization method
- Primary and backup power arrangements
- Manufacturer-specified protective and presence-detection devices
- Access-control and vehicle-detection equipment
- Electric or mechanical lock integration
- Leaf sequencing at opening and closing
- Manual-release method
- Manufacturer-defined behavior during a power outage
- System behavior if only one operator fails
- Emergency and fire-service access provisions required for the property
- Commissioning and testing scope
- User training and documentation
- Service access, warranty responsibility, and replacement-part availability
These are quote questions, not universal design prescriptions. Automation should be selected around the installed gate and the requirements applicable to that site.
Measurement and installation planning without treating supplier dimensions as universal
Treat installation as a product- and site-specific project rather than a generic tutorial. A planning sequence is:
- Ask the relevant utility-location service, municipality, and property owner what checks or permissions are required before work.
- Obtain the gate fabrication drawing and matching hardware instructions.
- Establish the finished driveway and surrounding grade.
- Mark the proposed hinge posts and both travel arcs.
- Have the responsible designer confirm the post and footing requirements.
- Set and brace posts according to the approved design and product instructions.
- Follow the specified concrete-loading or cure requirements.
- Temporarily support and hang both leaves.
- Align the center edges and establish the specified gaps.
- Install the designated latch, stop, bolts, lock, and receivers.
- Test manual movement as directed by the gate manufacturer.
- Have automation installed and commissioned under the applicable operator instructions and project requirements.
Post spacing must be derived from the actual leaf dimensions, hinge geometry, side clearances, and center gap. Adding two nominal leaf widths is not a reliable method.
Supplier instructions show why generic gap rules fail. Metal Solutions USA specifies a 1-inch center gap and 2-inch ground clearance for its described system (see the vendor-specific metal-gate sequence). Stellar Gates, by contrast, recommends 15 mm between leaves and 30 mm underneath for its wooden-gate package (see the timber-gate instructions). Neither measurement set should be transferred to an unrelated gate.
Temporary support lets both leaves be assessed together. Depending on the product instructions, blocks, packers, a jack, levels, or adjustable hinges may be used before final tightening. Confirm that the center edges meet at the intended height and that the specified gap remains suitable when the latch or bolts engage.
Before commissioning, ask the installer to document checks for:
- Hinge binding
- Dragging or changing ground clearance
- Contact with posts or brackets
- Frame distortion
- Unequal center height
- Incorrect center gaps
- Latch engagement
- Bolt alignment with receivers
- Conflicts with paving, curbs, drainage, or landscaping
Timber instructions may call for pilot holes to reduce splitting and position fasteners. Composite packages can have proprietary sequences for assembling frames, inserting panels, fitting locks, attaching hinges, and adding wheels. Mondaria’s installation demonstration, for example, shows a frame-and-panel sequence specific to its composite gate system; it should not be generalized to other products.
Excavation, lifting, concrete work, electrical work, pinch points, and automated equipment require methods beyond what the commercial sources cited here establish. Ask the relevant manufacturers and authorities who is qualified to perform each part, and use professional assistance whenever required by the product instructions, project design, or local rules.
What a double swing gate costs—and what advertised prices leave out
Panel price is only one part of the project. Separate the budget into line items so that a low advertised price cannot conceal missing structural, delivery, or operating components.
Manual gate budget worksheet
| Cost category | Budget or quoted amount |
|---|---|
| Gate leaf 1 | |
| Gate leaf 2 | |
| Finish, color, or infill upgrades | |
| Hinge posts | |
| Foundations, reinforcement, and concrete | |
| Hinges and mounting hardware | |
| Center stop or positive closure | |
| Latch or lock | |
| Drop bolts and ground receivers | |
| Optional hold-open hardware or wheels | |
| Freight, delivery, and unloading | |
| Site preparation and drainage work | |
| Installation labor | |
| Permits, surveys, or professional assessment | |
| Cleanup and surface repair |
Additional automated-gate costs
Add separate lines for:
- Two operators
- Control and synchronization equipment
- Electrical trenching, cabling, and disconnects
- Battery backup or solar equipment
- Protective devices specified for the project
- Vehicle detection
- Keypads, remotes, intercoms, or other access controls
- Lock and sequencing integration
- Manual-release provisions
- Emergency-access equipment
- Commissioning and user training
- Inspection, service, and replacement parts
Retail snapshots illustrate price spread but do not establish market averages. On August 14, 2026, the cited Hoover Fence page displayed selected residential galvanized chain-link double gates at approximately $297.79–$495.26, commercial galvanized models at $539.05–$2,057.24, industrial galvanized models at $721.45–$2,538.40, and all-aluminum models at $1,921.76–$3,158.53. Specifications and package contents varied, and the page did not establish a complete installed scope.
On the same review date, the configured 20-foot-wide, 6-foot-tall StandardGates dual-panel manual steel gate displayed a price of $4,889. The listing stated that the swing kit included hinges and two capped posts, while delivery conditions, unloading responsibility, and optional lift-gate service still required review.
The TOPENS collection displayed 16 dual-opener products with starting sale prices ranging from $399 to $819 on August 14, 2026. Those “from” prices and included features depended on the selected configuration and did not represent an entire gate project.
All of these figures are retailer-provided, time-sensitive snapshots. They are not installed-cost estimates, market averages, or evidence that the products have equivalent construction or performance. Prices and package contents should be checked again immediately before purchase.
Audit every package before purchase
| Explicitly included | Explicitly excluded | Not stated |
|---|---|---|
| Record only items named in the quote or listing | Record every stated exclusion or owner-supplied item | List anything shown, implied, or expected but unconfirmed |
| Example: two leaves | Example: electrical trenching | Example: center stop |
| Example: named hinge set | Example: unloading equipment | Example: foundations |
| Example: two capped posts | Example: installation labor | Example: protective devices |
Do not place an order while important components remain in the “not stated” column. Obtain written clarification.
When comparing contractor quotes, request the exact:
- Leaf material, dimensions, frame sections, and infill
- Documented or calculated weight of each leaf
- Post material and dimensions
- Footing and reinforcement scope
- Hinge manufacturer and model
- Latch, stop, bolt, and lock arrangement
- Finish system and touch-up responsibility
- Operator model and mounting arrangement
- Protective, access-control, and emergency-access equipment
- Electrical or solar scope
- Freight and unloading terms
- Site restoration and cleanup
- Product and workmanship warranties
- Service responsibility
- Assumptions, allowances, and exclusions
The most useful quote is not necessarily the lowest total. It is the quote that defines a complete, compatible system and identifies who is responsible for every unresolved requirement.
Opening direction, commissioning, and ongoing maintenance
Inward opening is commonly recommended for driveway gates because outward-moving leaves may enter roads, sidewalks, parking areas, or pedestrian routes. Outward swing is not universally prohibited, but contractor guidance identifies roads, cyclists, pedestrians, vehicles, municipalities, and homeowners’ associations as matters to check (review the outward-swing considerations).
Before selecting a direction, obtain the requirements applicable to the property from the municipality, road authority, fire authority, governing property documents, and HOA where relevant. Ask the gate and operator designers to identify acceptable waiting areas and operating clearances.
Unusual arrangements—including two leaves moving in different directions—may be technically possible. They still require compatible hinges, operators, locks, stops, control logic, and clearances, followed by review under the product instructions and site-specific requirements.
Commissioning questions
The installer’s commissioning record should identify whether:
- The posts meet the approved alignment and stability requirements.
- Leaf positions and gaps match the fabrication and hardware instructions.
- Both travel paths satisfy the approved site plan.
- Hinges and fasteners have been installed as specified.
- Stops, latches, locks, and bolts engage as designed.
- Manual movement meets the manufacturer’s requirements.
- Any drop-on hinge protection follows the hardware instructions.
- Damaged protective coatings have been repaired correctly.
- Wheels, if used, remain supported throughout their specified paths.
- Required keys, manuals, drawings, and test records have been delivered.
For an automated system, the record should also answer:
- Do the leaves open and close in the intended sequence?
- Have the devices specified by the operator manufacturer and project designer been tested?
- Can the manual release be accessed and used as instructed?
- What is the documented behavior during power loss?
- What happens if only one operator moves?
- Does the lock release and re-engage at the correct stage?
- How is required emergency access provided?
- Which operating areas must remain unoccupied?
- Who performed the commissioning, and which instructions or requirements were used?
Maintenance checklist
Use the gate, hardware, finish, and operator manufacturers’ specified inspection intervals. Service may include:
- Inspecting hinges, brackets, and fasteners
- Checking center height and gap
- Cleaning ground sockets and receivers
- Confirming that stops and locking hardware remain secure
- Looking for post movement or concrete cracking
- Checking wheel paths where wheels are installed
- Touching up damaged coatings
- Checking timber or composite movement
- Servicing operators, batteries, locks, controls, and protective equipment
- Retesting manual release and documented emergency-access functions
Adjustable hinges can correct modest movement. They should not be used repeatedly to conceal a loose post, moving foundation, distorted frame, or rapidly changing gap. Recurring misalignment calls for diagnosis of the underlying structure or site condition.
Frequently asked questions
How much swing clearance does a double swing gate need?
Each leaf needs clearance for its complete arc based on the actual fabricated length, hinge position, and required opening angle. For a 12-foot entrance divided into two approximately 6-foot leaves, the basic comparison is roughly 6 feet of swing depth per leaf rather than roughly 12 feet for one full-width leaf, before product-specific offsets and gaps are added (see the 12-foot configuration example).
A rectangular depth measurement alone is not enough. The fabrication drawing and selected hardware instructions should define the complete curved operating paths.
Is a double swing gate suitable for a sloped driveway?
Sometimes. The grade must be assessed throughout both arcs because an inward-rising, crowned, or compound surface can produce changing clearance.
If the selected leaves cannot achieve suitable clearance under their product requirements, ask the designer about a different opening direction, compatible specialized geometry, revised ground treatment, or a sliding system. “Sloped” by itself does not determine suitability.
Does an automatic double swing gate need two motors?
Generally, a fully automated double swing gate uses one coordinated operator for each leaf. The operators must be checked against each leaf’s length, weight, infill, hinge geometry, opening angle, wind exposure, power arrangement, and expected duty (compare the seller’s per-leaf operator categories).
The quote should also identify sequencing, lock integration, manual release, outage behavior, commissioning, and the requirements applicable to automated operation at that property.
What hardware is needed for a manual double swing gate?
A typical system includes two hinge-side supports, a compatible hinge system for each leaf, a center latch or lock, any specified positive stop, and drop bolts, cane bolts, or foot bolts with suitable receivers. The exact arrangement depends on how one or both leaves are intended to operate.
Package contents must be confirmed in writing because panels may be advertised separately from posts, hinges, latches, locks, bolts, stops, wheels, and installation materials.
Should a double swing gate open inward or outward?
Inward opening is commonly preferred because it keeps the leaves from moving into a road, sidewalk, parking area, or pedestrian route. It still requires sufficient private-property depth and an acceptable vehicle waiting position.
Outward opening is not prohibited everywhere. Before selecting it, check the property boundary and obtain the applicable requirements from the municipality, road authority, fire authority, property documents, and HOA.
A double swing gate is a strong candidate when a property has two usable operating arcs but insufficient depth for one full-width leaf. Make the final decision from a documented site survey and leaf-by-leaf specification: confirm the opening and grade, obtain manufacturer-specific gaps and hinge geometry, identify every structural and closure component, size automation for each leaf, and compare complete project costs rather than panel prices.
If slope, wind, existing foundations, automated-gate requirements, emergency access, or local rules remain unresolved, settle those questions with the relevant manufacturers, authorities, and qualified professionals before ordering.
