Choose a Safe Retrofit for a Taller Chain-Link Fence
Decide whether post extenders, taller fabric or light mesh fit your fence, and when weak posts, privacy screening or added height require rebuilding.
A chain-link height extension is reasonable when the existing posts and footings are sound and the added barrier remains open to wind. Repair or rebuild instead when the fence leans, posts move at ground level, the goal is solid privacy, or the extension would add more than 2 feet to light residential framework.
Enter the added height, fence condition and barrier type to identify the appropriate retrofit.
Height Extension Check
This screening result does not verify post strength, footing size or local approval.
Sleeved Extenders May Be Suitable
An 18-inch open-fabric extension on a sound fence is a candidate for matched post extenders. Verify every post OD, the tube compatibility, terminal-post support, footings and finished height before buying parts.
Basis: CLFMI January 2023 wind-load guidance and the cited post-extender manufacturer specifications. A site-specific load capacity is not available from these inputs.
| Goal | Practical Approach | Main Limitation |
|---|---|---|
| Add 12–24 inches for a dog or garden | Galvanized post extenders with open mesh | Existing posts and footings carry the added load |
| Convert a 4-foot fence to a finished 6-foot fence | Extend or replace posts, raise the top rail and install new 6-foot fabric | More work, but cleaner than adding a narrow strip |
| Add an inward-angled animal deterrent | Rail-mounted angled extensions with light netting or welded wire | The top rail and fittings become part of the support |
| Add privacy screening | Have the finished framework checked for expected wind load | Slats and screens can overload light residential framework |
| Add more than 2 feet or repair a weak fence | Usually replace posts and consider replacing the fabric | Avoids relying on marginal posts and footings |
Inspect the Posts and Footings First
Measure from grade to the proposed highest point, not from the existing top rail. Check every line, corner, end and gate post for rust at grade, dents, leaning, loose concrete and movement when pushed. Terminal and gate posts require particular attention because they resist fabric tension or gate loads.
Do not use extenders to disguise a failing base. Movement at the ground, perforating rust, cracked or heaved concrete and an existing lean are reasons to repair or replace the post and footing first. An extension increases leverage above the footing; it does not strengthen the buried section.
Measure each post’s actual outside diameter, or OD, with calipers. Alternatively, wrap a tape around the post and divide the circumference by 3.142. Fence trade sizes do not always equal actual diameter: a nominal 2-inch post commonly measures 1-7/8 inches OD, while a nominal 2-1/2-inch post commonly measures 2-3/8 inches OD.
Extenders must match both the OD and a compatible tube wall. One supplier’s chart separates 1-5/8-, 1-7/8-, 2-3/8- and 2-7/8-inch actual diameters, lists the tubing grades each sleeve fits and warns that the existing post and footing must support the new height (Hoover Fence). Consult the chain-link post-size guide before assuming framework built for a 4-foot fence is adequate at 6 feet.

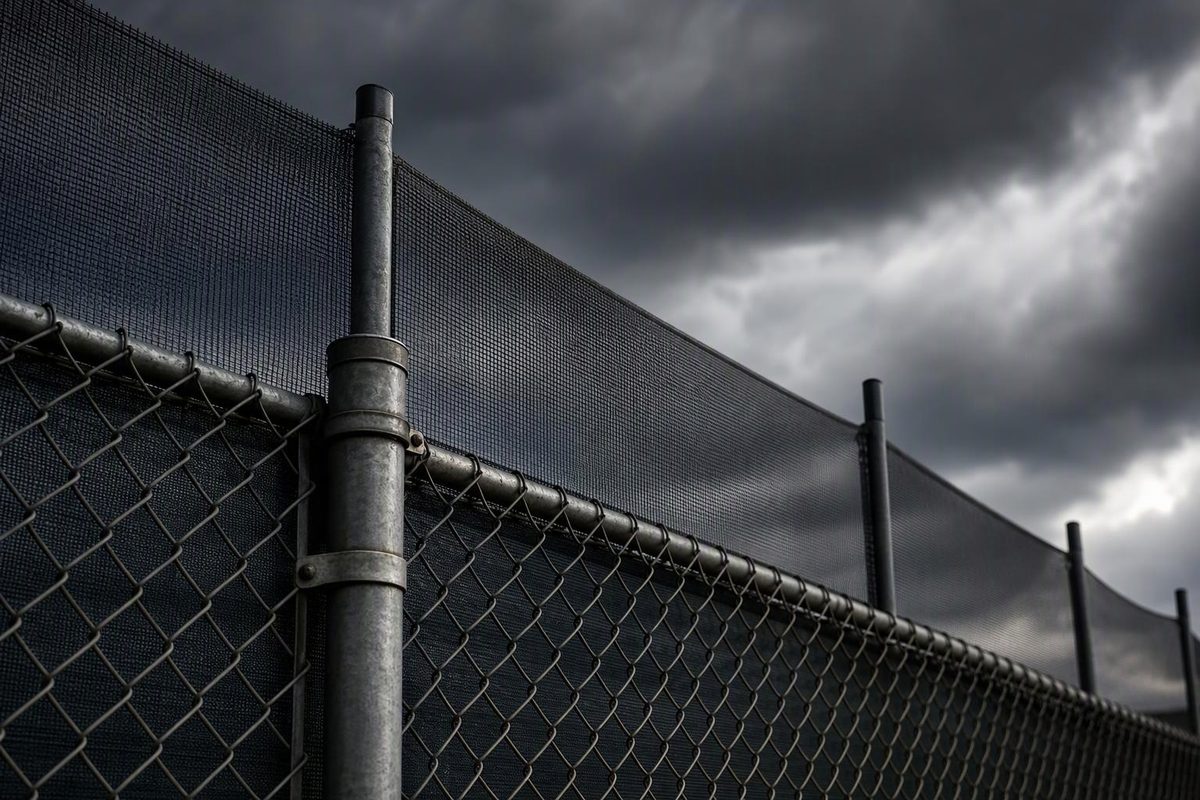

Use Sleeved Extenders for a Conventional Vertical Fence
Purpose-made galvanized extensions use an inner sleeve that fits the existing post and an outer tube that continues upward. The cited supplier offers 1- and 2-foot versions secured by through-bolting or tack welding (Hoover Fence). Follow the selected product’s connection instructions rather than improvising with loosely fitting pipe.
Sleeved extenders suit a fence that needs a normal upper rail and either light upper mesh or completely new, taller chain-link fabric. Treat line, corner and end posts as one system. Taller fabric needs suitable terminal posts for tensioning; extending only the intermediate line posts does not create those tension points.
For a clean conversion from 4 feet to 6 feet, one full-height roll is generally preferable to a narrow strip attached above the old fabric. Two rolls can be joined side to side by weaving in a strand, but a horizontal joint requires separate lacing, ties or overlap and remains visually obvious.
Reserve Rail-Mounted Arms for Lightweight Barriers
Some extension brackets bolt to the existing top rail without removing it and can be set vertically or at an angle. Available products are sold by actual rail or post OD, including 1-3/8- and 1-5/8-inch sizes (DF Supply). Measure the member the bracket will clamp around rather than choosing by appearance.
These brackets place the load through the existing rail and fittings. Reserve them for light netting or welded wire unless the product manufacturer expressly approves another use. They are not substitutes for extended terminal posts when installing tensioned chain-link fabric, heavy panels or privacy screening.
Cover or turn back cut wire ends so they cannot injure people or animals. Check that an inward-angled arm will not project into a walkway or neighboring property.
Privacy Screening Makes Wind Load the Deciding Factor
Open chain-link fabric presents less solid area to wind than slats, tarp-like screens, reed panels or solid extensions. The Chain Link Fence Manufacturers Institute’s January 2023 wind guide identifies fence height, fabric area, post strength, spacing, footing, soil and wind exposure as relevant design factors. It explains that fence height multiplied by line-post spacing establishes the area transferring force through the posts and into the footings (CLFMI wind-load guide).
An extender fitting the post is not a structural check. If privacy is the objective, have the finished assembly evaluated for the site or rebuild it with appropriate posts, spacing and footings. A chain-link installation manual likewise recommends considering 6- or 8-foot post spacing and larger-diameter, heavier-wall framework when privacy products increase wind load (Hoover Fence). The fence-height extension guide compares mesh, lattice, panels and slats.
Confirm the Finished Height Before Installation
Ask the local planning or building department how it measures an extension and whether the finished height changes the permit requirement. Check HOA rules, easements and corner sight-distance restrictions as well.
Local rules can be highly specific. Big Lake, Minnesota, requires a building or administrative permit for fences, generally limits rear- and side-yard fences to seven feet, and requires a building permit for fences over seven feet measured from grade to the top (Big Lake code). That rule applies in Big Lake and does not establish the limits elsewhere.
Plan the gates at the same time. A short gate can defeat an animal-containment project. Decide whether to replace or extend its frame, and verify that added hardware will not interfere with swing, ground clearance or latching.
Install the Extension as a Complete System
- Release the fabric where necessary. Remove top-rail ties and fittings as required by the selected system. Support the fabric so it does not fold or pull against terminal posts.
- Dry-fit and align the extenders. Confirm every diameter and establish a level or grade-following top line. Through-bolt or weld only as the extender manufacturer specifies.
- Protect exposed steel. Apply a compatible repair coating at drilled holes, cuts and welds.
- Build the upper framework. Refit loop caps and top rail where the design requires them. Seat rail joints and use compatible fittings; the chain-link top-rail guide covers diameter, wall thickness and joint styles.
- Install the barrier. Stretch full-height chain-link fabric between suitable terminal posts, or attach lightweight upper mesh at every support specified by its manufacturer. Close gaps at corners and gates and remove sharp projections.
- Inspect the finished assembly. Check posts for plumb, connections for tightness and gates for full swing and reliable latching. Inspect it again after strong wind.
ASTM F567-23 covers chain-link installation as a complete system, including post setting, terminal bracing, top rail or tension wire, fabric, ties and gates (ASTM). Apply that same system view to a retrofit: a sound connection at the top cannot compensate for a weak post, footing or terminal assembly below.
Treat Pool Barriers as a Separate Compliance Project
Added height alone does not establish that a pool barrier complies. Mesh opening, bottom clearance, climbability and gate operation can also matter.
The U.S. Consumer Product Safety Commission’s voluntary guidance addresses those details and recommends outward-opening, self-closing and self-latching pedestrian gates, while emphasizing that local codes control (CPSC). Have the authority with jurisdiction approve the finished barrier details before altering a pool fence.
